Products Description

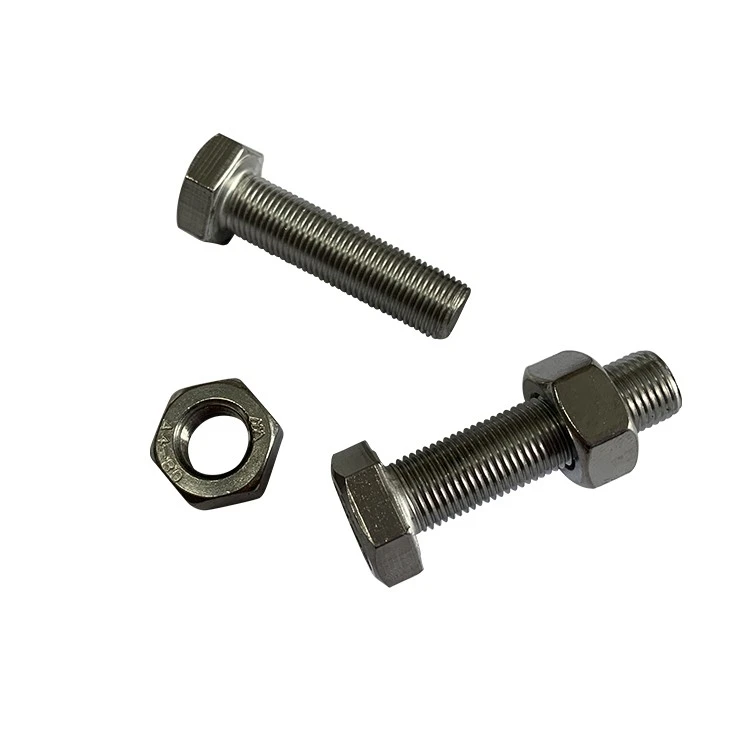

Fine thread hexagon head bolts feature a fine pitch design with denser threads. Compared with standard coarse thread bolts, they offer better self-locking performance, higher joint fatigue strength and more precise adjustability. Their hex heads enable quick installation and removal using wrenches, sockets or impact wrenches.
Applications: equipment requiring high anti-loosening performance and subject to heavy vibration; precision machinery needing fine displacement adjustment; thin-walled components and connection areas with limited thread engagement length.
Core Advantages
Excellent anti-loosening property
With a smaller thread lead angle and larger friction torque, they are resistant to loosening under vibrating conditions, reducing the use of spring washers and anaerobic adhesives.
Higher strength
At the same diameter, fine thread bolts have a slightly larger stress cross-sectional area, delivering better tensile strength and fatigue resistance.
Precise adjustment
They produce smaller axial displacement per full rotation, ideal for fine positioning mechanisms and applications demanding high locking accuracy.
Shorter thread engagement length
On thin plates and thin-walled parts, fine threads can achieve sufficient meshing threads with shallower thread depth.
Specifications (Common Sizes)
| Thread Size | Pitch (mm) | Across Flats (mm) | Length Range (mm) |
|---|---|---|---|
| M8×1 | 1.0 | 13 | 20 ~ 80 |
| M10×1.25 | 1.25 | 16 | 25 ~ 100 |
| M12×1.5 | 1.5 | 18 | 30 ~ 120 |
| M14×1.5 | 1.5 | 21 | 35 ~ 150 |
| M16×1.5 | 1.5 | 24 | 40 ~ 200 |
Other specifications (below M6, above M20, and non-standard lengths) are available upon request.
Notes / Important Considerations
- Do not mix with coarse threads: Fine thread bolts must be paired with nuts or threaded holes of the same pitch.
- Lubrication is recommended before assembly: Molybdenum disulfide grease or regular machine oil is recommended to prevent thread galling, especially on stainless steel fasteners.
- Calibrate tightening torque: Due to higher friction, the required torque for fine thread bolts is generally lower than that of coarse thread bolts of the same size. Always follow the technical specification sheet.
- Not recommended for soft materials: Such as pure aluminum, cast iron, or plastics, as they are prone to thread stripping or damage to the internal threads.
